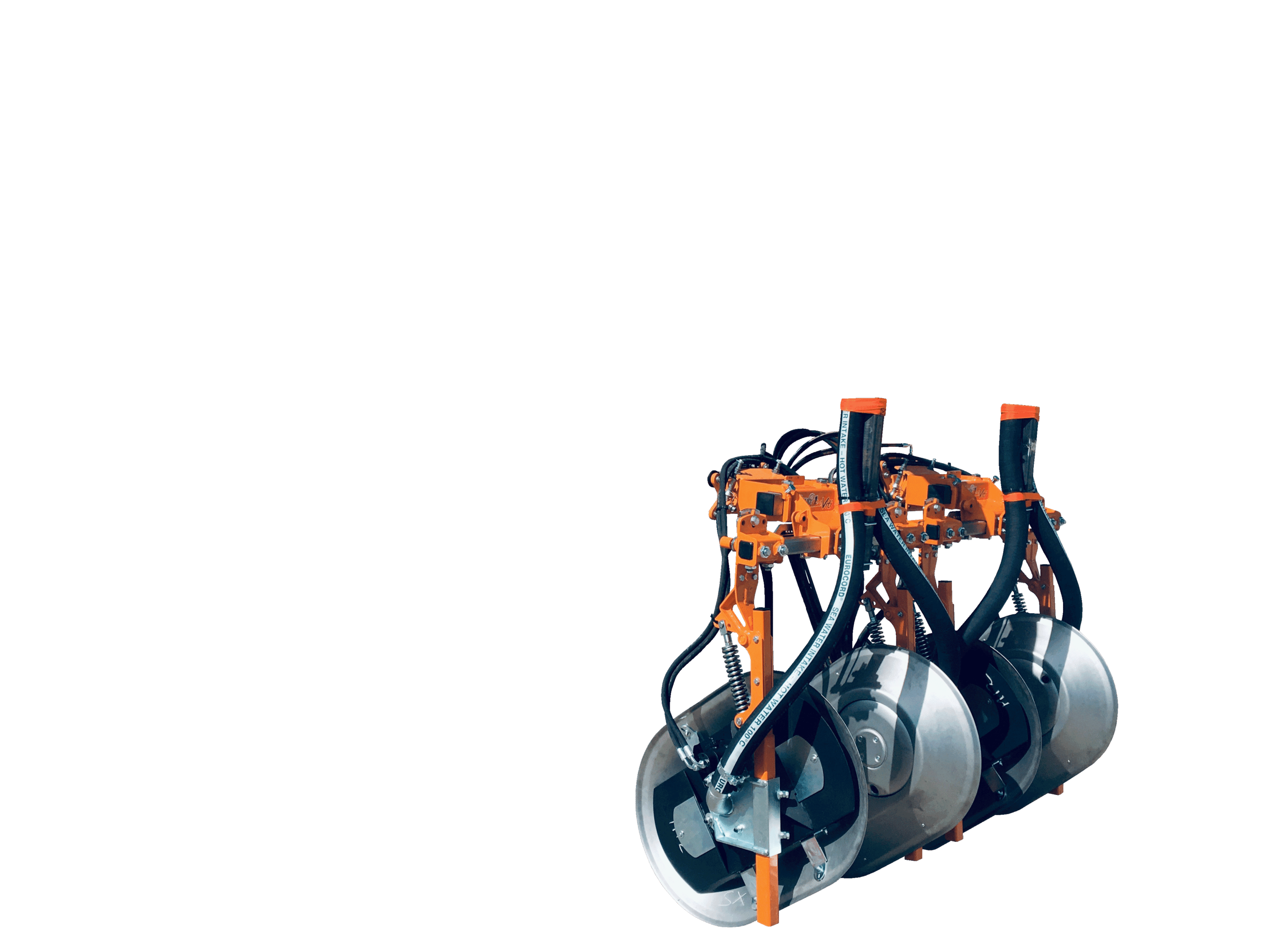

Leaf strippers EE
Range EE
(Leaf strippers for straddle tractors)

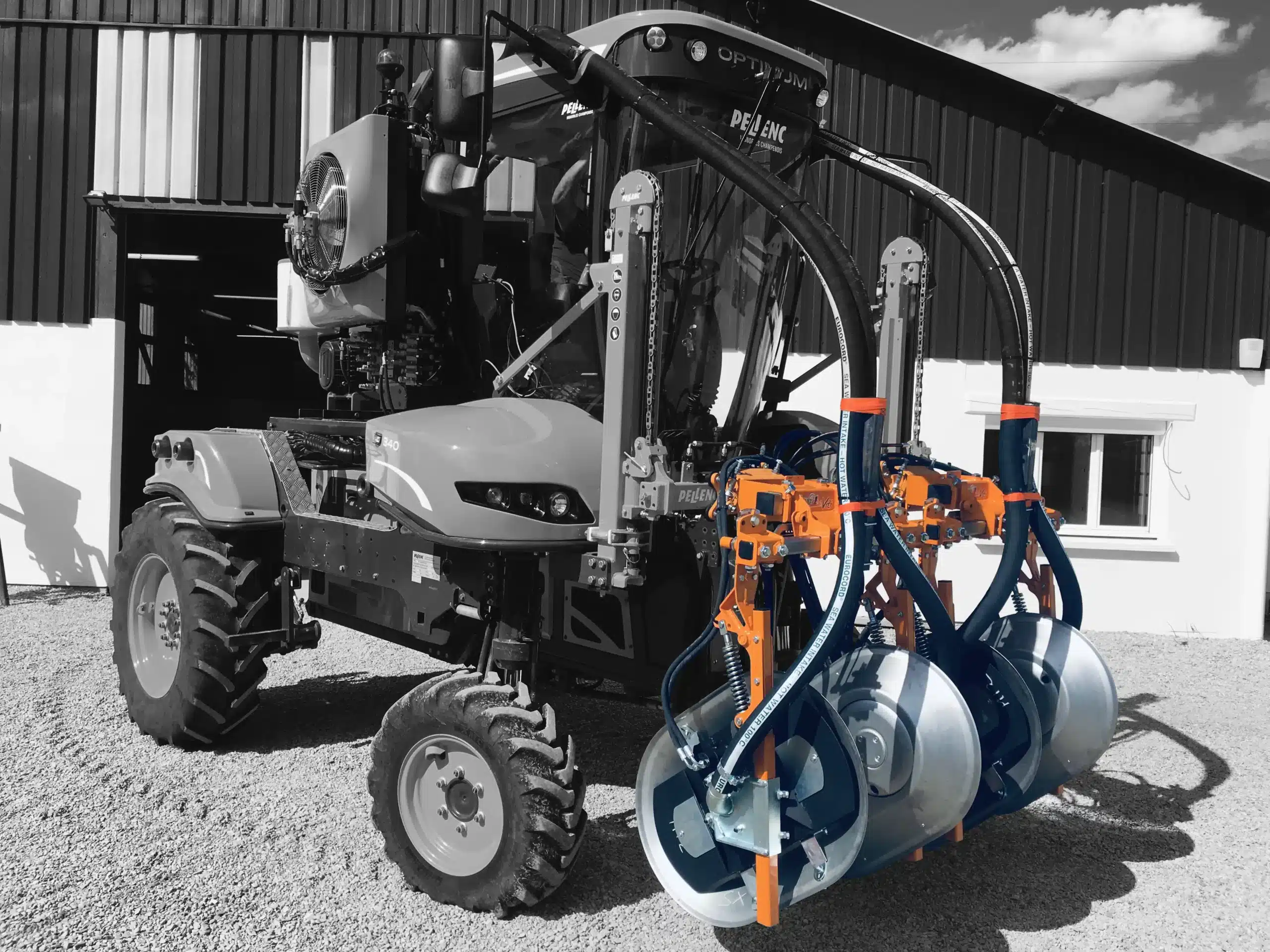

Front-mounted on straddle tractor
Configuration :
Vine rows planted :
EE100 : From 0.80m to 1.50m
EE270 : From 1.30m to 1.80m
EE200 and EE370 : From 0.90m to 1.30m or 1.10m to 1.50m
Frame with hose support
Numerous settings
Technical details :
Leaf-stripping height :
From 30cm to 60cm
Working pressure :
From 0.5 to 0.6 bar
Number of heads :
From 2 to 6 twin-rotor heads
Standard equipment :
• Frame with 2 to 4 straddle-mounted twin-rotor heads
• Adaptable to MP4 mast (EE100 and EE200) or MP5 (All models)
• Hydraulic rotor drive
• Manual row thickness adjustment (hydraulic optional)
• Manual row spacing (hydraulic optional)
• Deletion safety device on each head

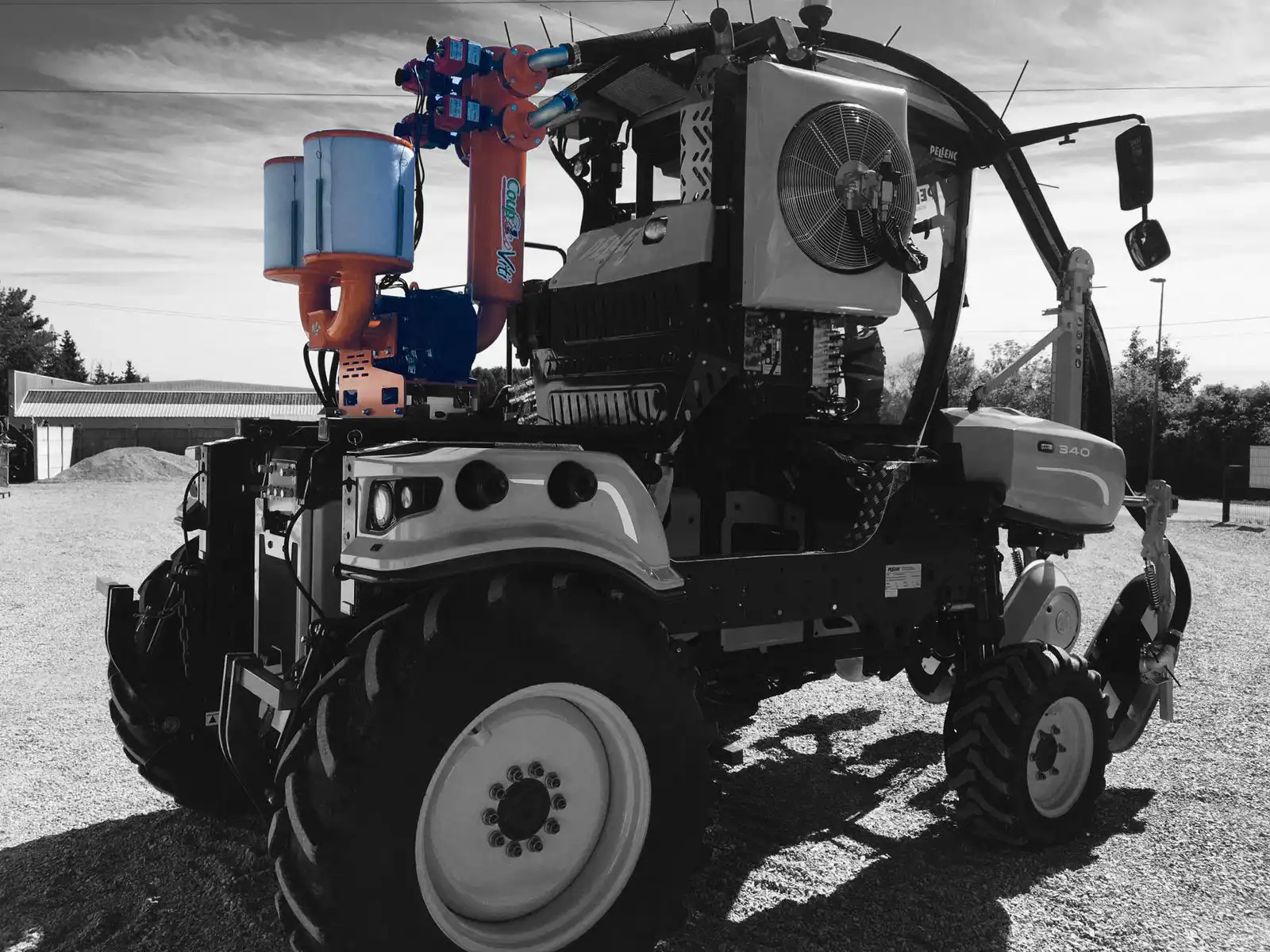

• Booster driven by variable displacement hydraulic piston motor (Optional for EE370)
• Simple filtration on booster suction (EE100)
• Double filtration on booster suction (EE200 / EE270 / EE370)
• Supplied with removal support
• Connection hoses and fittings supplied
• Adaptable to MP4 mast (EE100 and EE200) or MP5 (All models)
• Hydraulic rotor drive
• Manual row thickness adjustment (hydraulic optional)
• Manual row spacing (hydraulic optional)
• Deletion safety device on each head
• Booster driven by variable displacement hydraulic piston motor (Optional for EE370)
• Simple filtration on booster suction (EE100)
• Double filtration on booster suction (EE200 / EE270 / EE370)
• Supplied with removal support
• Connection hoses and fittings supplied
Optional equipment :
EE100 :
• Booster hydraulic flow rate : 100L/min at 200/250 bar
• Nozzle rotor hydraulic flow rate 25L/min regulated at 80/100 bar
• Adjustment cylinder flow rate 7L/min at 180 bar
EE200 et EE270 :
• Blower hydraulic flow rate : 120L/min at 200/250 bar
• Nozzle rotor hydraulic flow rate 25L/min regulated at 80/100 bar
• Adjustable cylinder flow rate 7L/min at 180 bar
EE370 :
• Blower hydraulic flow : 120L/min at 250/300 bar
• Nozzle rotor hydraulic flow 25L/min regulated at 120/150 bar
• Adjustment cylinder flow 7L/min at 180 bar
• Booster hydraulic flow rate : 100L/min at 200/250 bar
• Nozzle rotor hydraulic flow rate 25L/min regulated at 80/100 bar
• Adjustment cylinder flow rate 7L/min at 180 bar
EE200 et EE270 :
• Blower hydraulic flow rate : 120L/min at 200/250 bar
• Nozzle rotor hydraulic flow rate 25L/min regulated at 80/100 bar
• Adjustable cylinder flow rate 7L/min at 180 bar
EE370 :
• Blower hydraulic flow : 120L/min at 250/300 bar
• Nozzle rotor hydraulic flow 25L/min regulated at 120/150 bar
• Adjustment cylinder flow 7L/min at 180 bar
