195 to 330 kg


Weed / Grass / Vegetation cover

Working width

0.50 to 1.05m

Complete range from 0.50 m to 1,050 m.

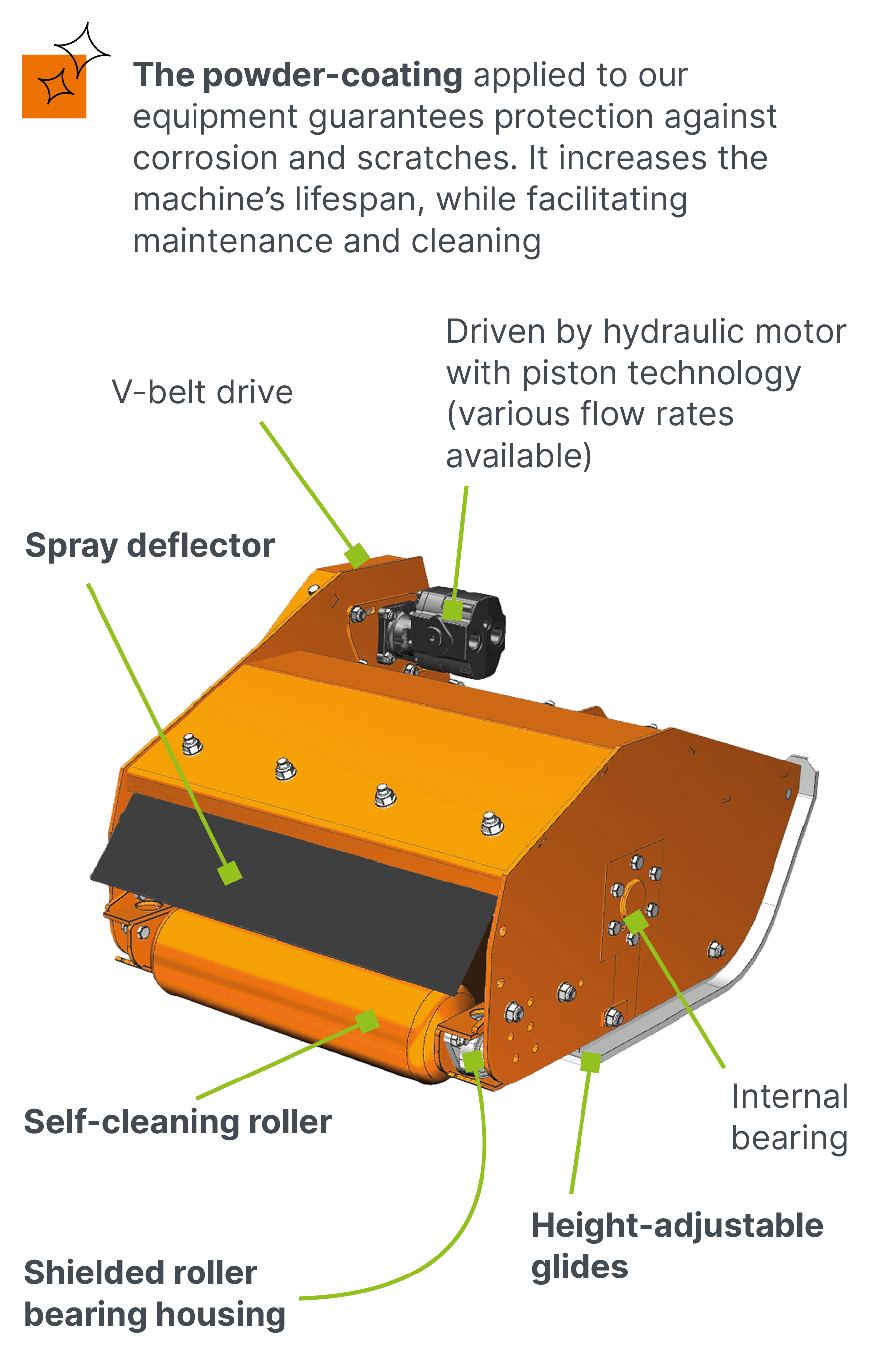

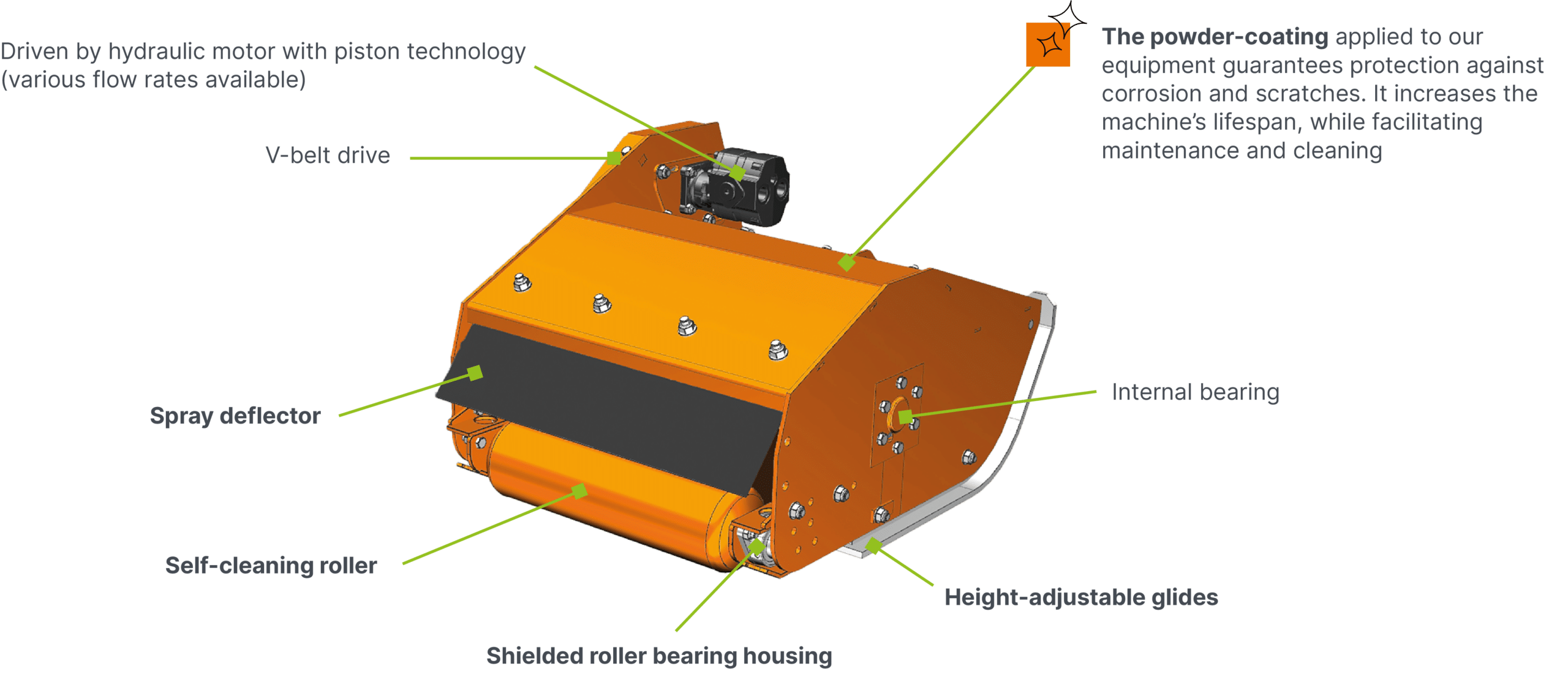

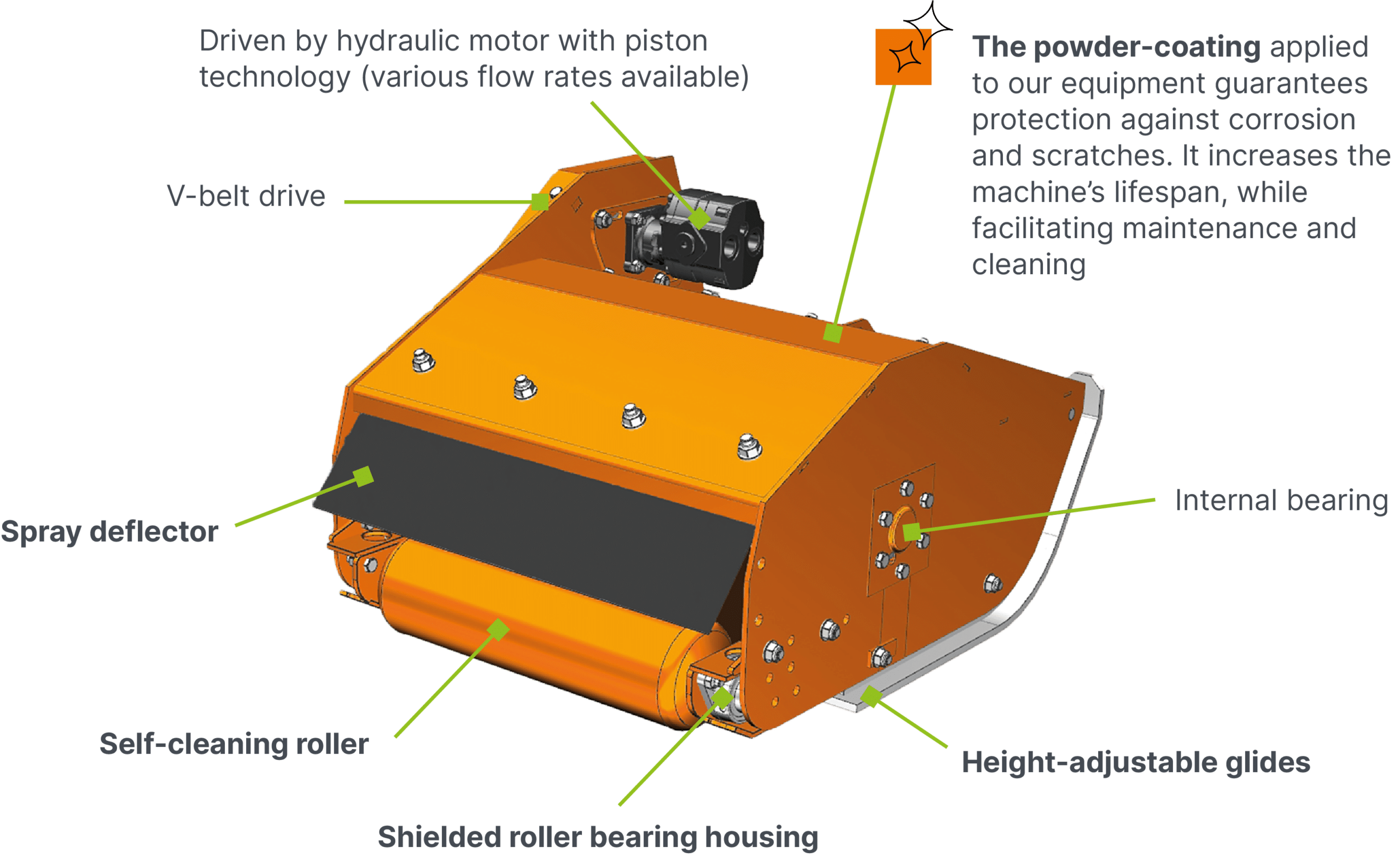

NAOTEC BHH grass mulchers are specially designed for intensive work on high-clearance tractors.
Their 30 cm front opening and heavy rotor give them exceptional output.
The 5 mm body offers unrivalled robustness.

Equipment :

Height-adjustable skids and rear roller for the vine shredder.

Hydraulic shredder motor with freewheel.

Rotor fitted with hammers (spoon blades, Y blades on request).

Rear anti-projection deflector for the vine shredder to eject vegetation.

2 possible engines: 55-70 l/mn or 70-90 l/mn at 190 bar.


– Multi-purpose horizontal shaft shredder
– Robust shredder: 8mm sheet metal
– Anti-projection rear deflector for vegetation ejection
– 5mm high-grade steel body
– Height-adjustable skids and roller
– Compact attachment for mounting between tractor wheels
