BSM
VINE SHOOTS SHREDDERS

PoidsWeight
390 to 660kg

Working width
0.90 to 1.60m

Specialised
Vine shoots

Number of hammers
12 to 20
Complete range from 0.95 m to 1.70 m for tractors with 40 to 60 HP PTO.

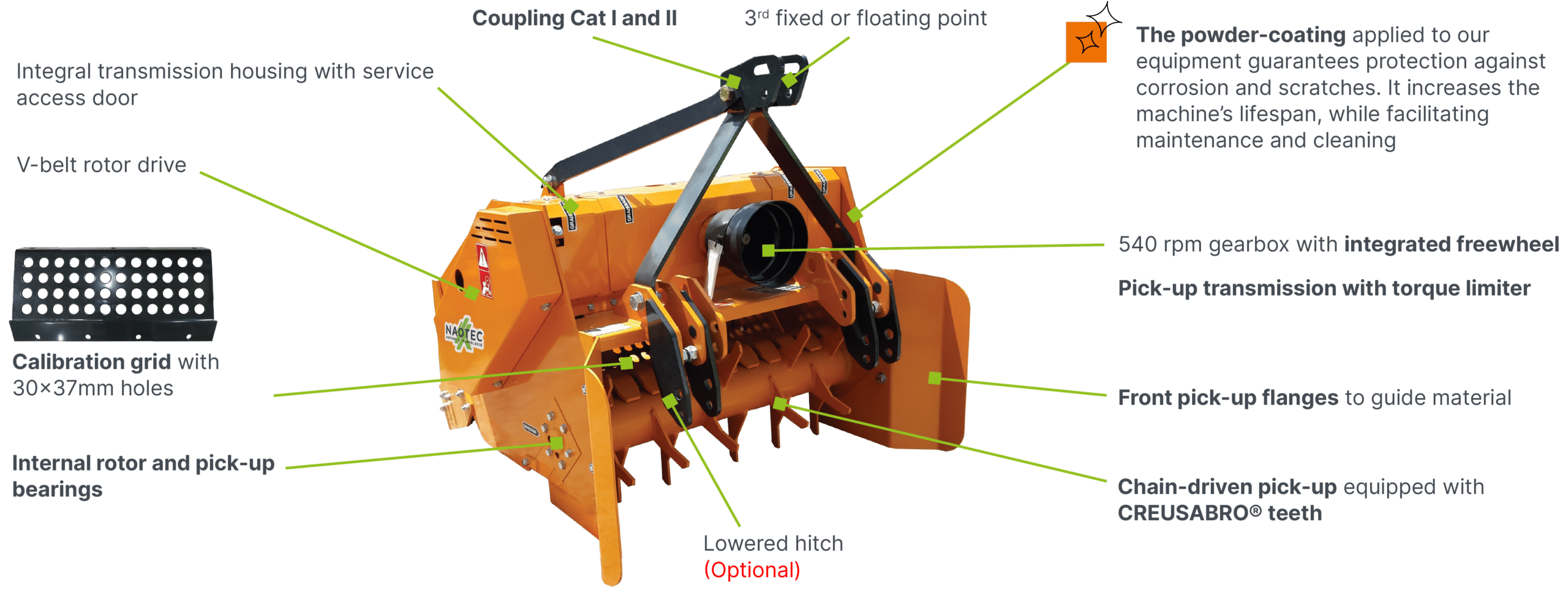

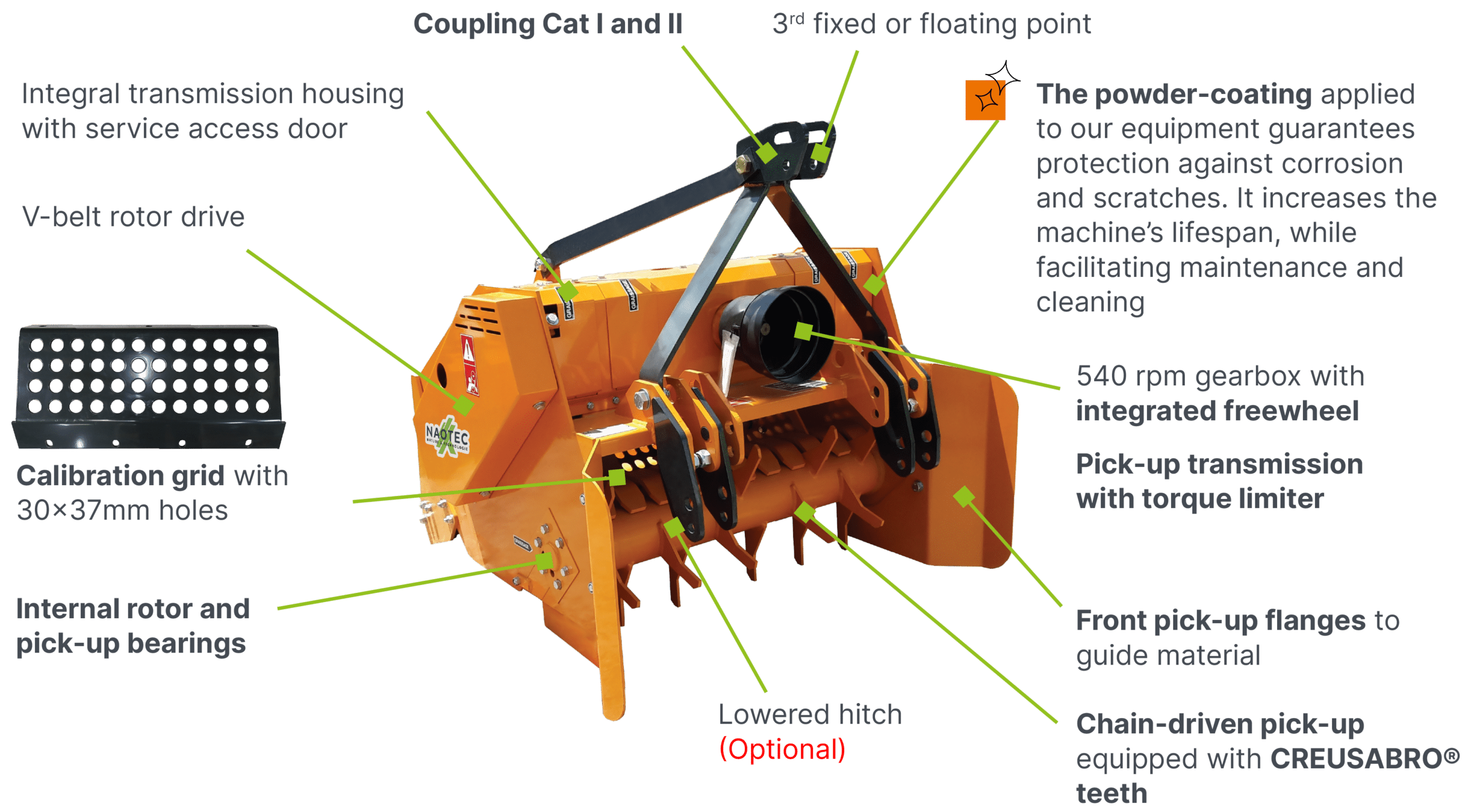

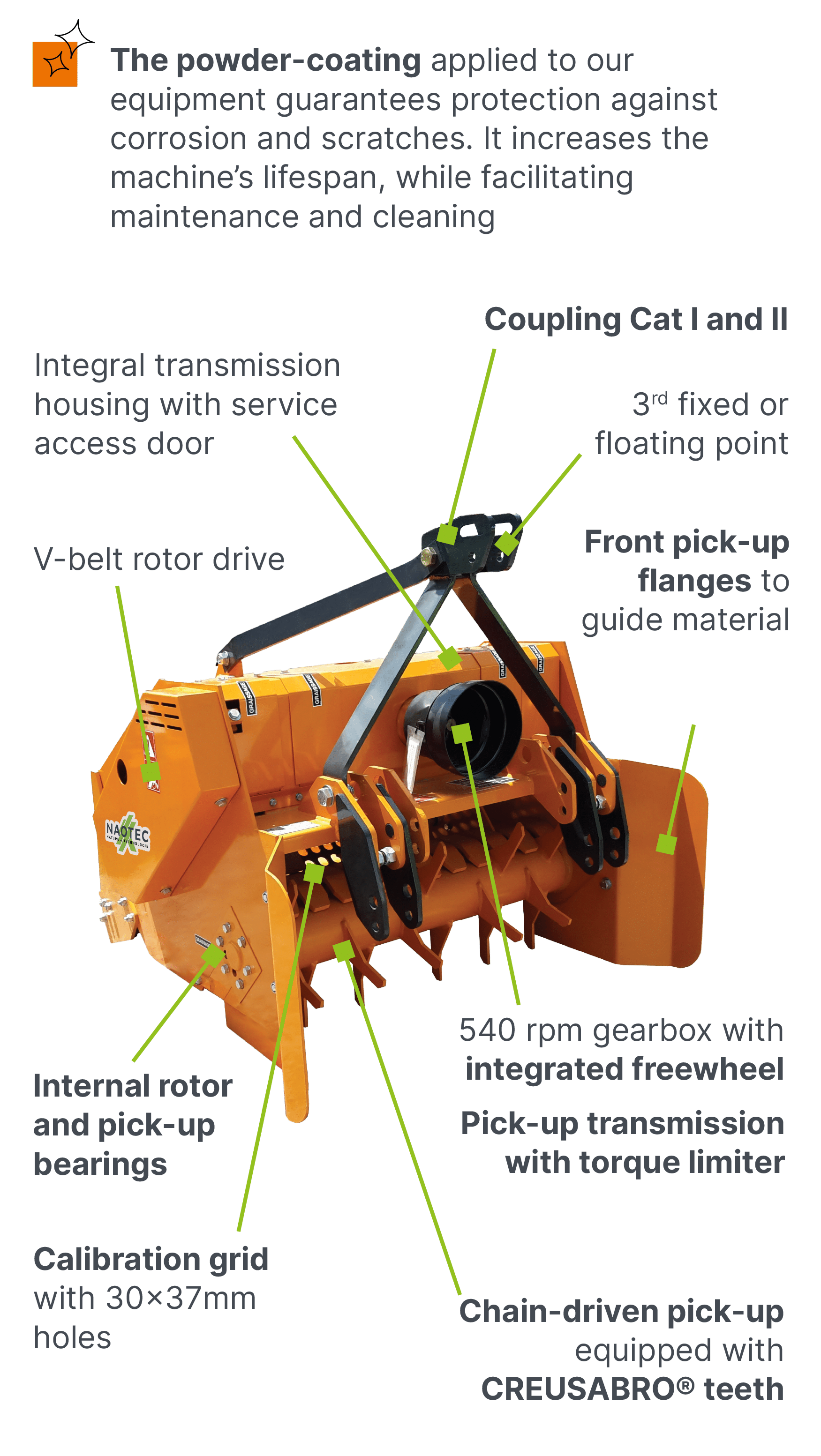

Above-ground shredding greatly reduces hammer wear compared with a conventional shredder.
The ejection grid is made up of 30×37.5 mm holes to calibrate the shredded vine shoots.
The hammer rotor is mechanically driven by V-belts.
PTO: 540 rpm with torque limiter on the pick-up drive.
Specifications:
– Robust shredder: 8mm sheet metal
– Pick-up with CREUSABRO® teeth
– Easy access to rotor (access hatch)
– Pick-up tine kit (optional)
– Supplied with cardan transmission
– Pick-up cheeks at the front of the pick-up
– Fixed or floating 3-point linkage
– Fixed pneumatic wheels (swivel wheels and roller optional)
– Pick-up with CREUSABRO® teeth
– Easy access to rotor (access hatch)
– Pick-up tine kit (optional)
– Supplied with cardan transmission
– Pick-up cheeks at the front of the pick-up
– Fixed or floating 3-point linkage
– Fixed pneumatic wheels (swivel wheels and roller optional)
